CZR i23

$749.95

Select Product

View Specs

Product Description

CZR i23 gravel wheels are designed to minimize weight while blending stiffness and compliance to maximize power transfer and increase comfort. CZR i23 rims feature a 24mm section depth to maximize energy transfer, reduce weight, improve vertical compliance, and reduce rider fatigue while a hooked bead also improves tire retention with high pressure adventure road and gravel tires.

Usage: Adventure Road • Gravel

Features

Technology

View the Specs

FAQs

Reviews

CZR i23 Carbon Rims

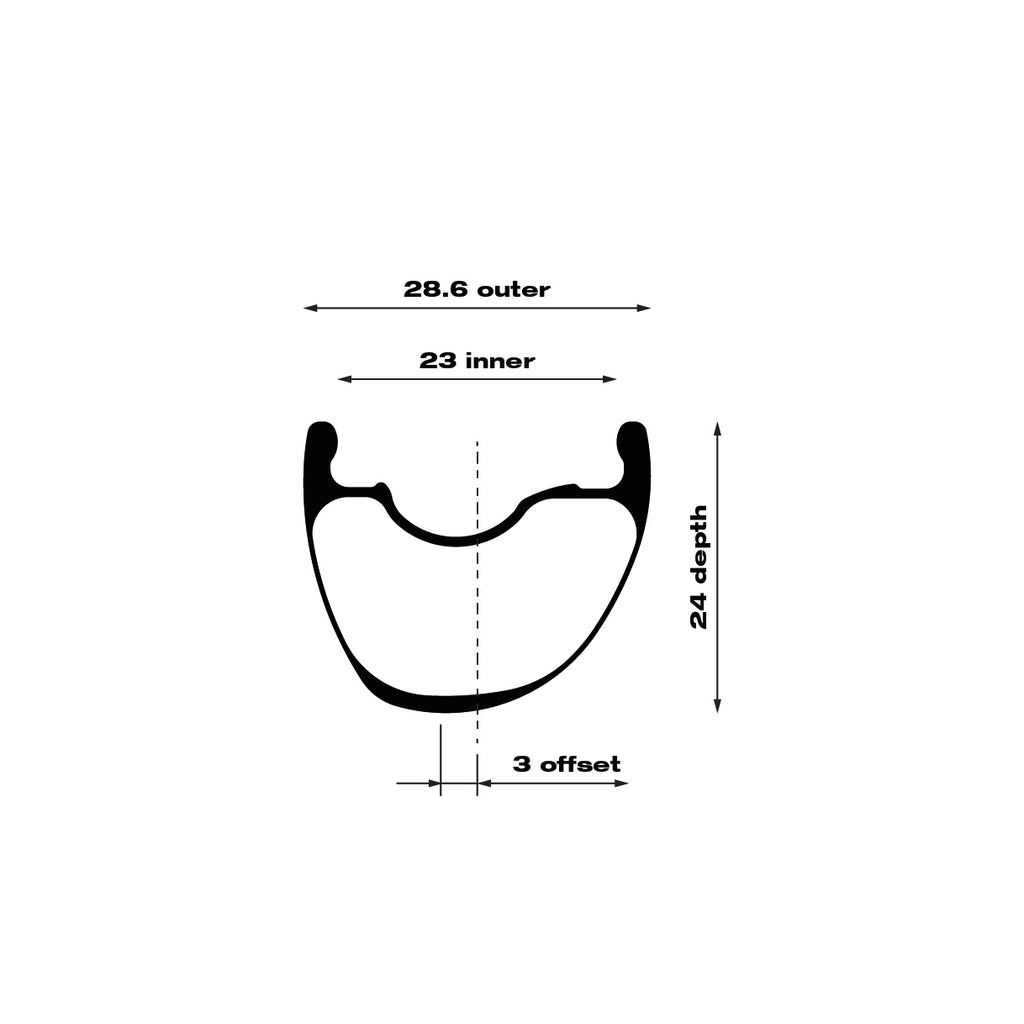

Reinforced spoke beds improve overall wheel strength and durability while also minimizing weight in areas where less strength, and therefore material, is needed. CZR i23 rims feature 3mm of asymmetrical spoke offset and a 24mm section depth to improve radial stiffness and maximize energy transfer without being affected by crosswinds like other wheels with deeper profiles.

Solid Strip & TCS Tape

Durable nylon strip that lies between the rim and tubeless tape to prevent tubeless tape from pushing into the spoke holes and ensures a smooth interface between the tire and rim. The smooth surface makes it easier to mount a tire by preventing air from escaping around the bead at each indent during inflation. Solid Strip also protects the airtight system from puncture in the case of a broken spoke.

2-cross or 3-cross lacing

CZR i23 gravel wheels with 24 spokes feature a 2-cross lacing pattern to increase radial stiffness and decrease weight. CZR i23 wheels with 28 spokes feature a 3-cross pattern to increase durability while still providing ample radial stiffness due to the additional spokes.

Frequency Hubs

The world’s best carbon rims deserved to be paired with high-quality hubs that further improve the performance of a lightweight, dependable carbon wheelset. Frequency hubs feature a low-drag, 6-pawl design that alternates contact between two sets of 3-pawl groupings to provide a responsive 5 degrees of freehub engagement. Frequency hubs laced to CZR i23 wheels feature lightweight pawl springs that minimize drag and therefore improve efficiency for drop bar usage

Aerodynamic Wing Spokes

Pillar racing spokes that are cold forged into an aerodynamic wing shape that reduces drag at the trailing end of each spoke. As a result, wing spokes improve overall efficiency while still retaining the gram-conscious weights of traditional bladed spokes.

Sapim alloy nipples

All CZR i23 wheels feature time-tested Sapim alloy nipples to further reduce overall wheel weight while still exceeding the durability requirements of gravel.

PRODUCT TECHNOLOGY

TCS (Tubeless Compatible System) is our industry-leading tubeless rim/tire system designed to international ETRTO and ISO standards.

WTB carbon components are designed to provide a perfect blend of stiffness and compliance while also proving to be nearly indestructible.

Additional carbon at each spoke bed improves overall rim strength and durability while also minimizing weight in areas where less strength, and therefore material, is needed.

Spoke holes are drilled at an angle to match the natural spoke path between a rim and hub. Eliminates binding and lateral loading of the nipples to increase wheel durability.

Sloped rim valley allows the bead of the tire to easily and smoothly move into place during installation and inflation.

Installed between the rim and tubeless tape to prevent tape from sagging at each spoke hole and make tire inflation easier while also preventing puncture from a broken spoke.

Freehub ratchet system quickly alternates between two groups of three pawls each to provide quick engagement and trusted durability.

Cold forged Pillar racing spokes provide an aerodynamic wing shape to reduce drag at the trailing end of each spoke and improve overall efficiency while trimming weight.

SPECIFICATIONS: (Max spoke tension range: 110-120KgF)

Product	Wheel Diameter	Position	Spacing	Spoke Holes	Driver Body	Rotor Mount	Inner Rim Width	Rim ERD*	Weight**	Max Rider Weight	Part Number
CZR i23 x 700 wheel, 100 x 12mm, 24h, 6-bolt, Wing21	700	Front	100x12mm	24-hole	n/a	6-Bolt	23mm	590	634g	265lbs	W045-0244
CZR i23 x 700 wheel, 100 x 12mm, 24h, Centerlock, Wing21	700	Front	100x12mm	24-hole	n/a	Centerlock	23mm	590	620g	265lbs	W045-0250
CZR i23 x 700 wheel, 100 x 12mm, 28h, 6-bolt, Wing21	700	Front	100x12mm	28-hole	n/a	6-Bolt	23mm	590	676g	265lbs	W045-0247
CZR i23 x 700 wheel, 100 x 12mm, 28h, Centerlock, Wing21	700	Front	100x12mm	28-hole	n/a	Centerlock	23mm	590	650g	265lbs	W045-0253
CZR i23 x 700 wheel, 142 x 12mm, 24h, 6-bolt, Wing21, Shimano HG 11sp	700	Rear	142x12mm	24-hole	Shimano HG 11spd	6-Bolt	23mm	590	788g	265lbs	W045-0245
CZR i23 x 700 wheel, 142 x 12mm, 24h, 6-bolt, Wing21, SRAM XDR	700	Rear	142x12mm	24-hole	SRAM XDR	6-Bolt	23mm	590	785g	265lbs	W045-0246
CZR i23 x 700 wheel, 142 x 12mm, 24h, Centerlock, Wing21, Shimano HG 11sp	700	Rear	142x12mm	24-hole	Shimano HG 11spd	Centerlock	23mm	590	775g	265lbs	W045-0251
CZR i23 x 700 wheel, 142 x 12mm, 24h, Centerlock, Wing21, SRAM XDR	700	Rear	142x12mm	24-hole	SRAM XDR	Centerlock	23mm	590	776g	265lbs	W045-0252
CZR i23 x 700 wheel, 142 x 12mm, 28h, 6-bolt, Wing21, Shimano HG 11sp	700	Rear	142x12mm	28-hole	Shimano HG 11spd	6-Bolt	23mm	590	820g	265lbs	W045-0248
CZR i23 x 700 wheel, 142 x 12mm, 28h, 6-bolt, Wing21, SRAM XDR	700	Rear	142x12mm	28-hole	SRAM XDR	6-Bolt	23mm	590	821g	265lbs	W045-0249
CZR i23 x 700 wheel, 142 x 12mm, 28h, Centerlock, Wing21, Shimano HG 11sp	700	Rear	142x12mm	28-hole	Shimano HG 11spd	Centerlock	23mm	590	805g	265lbs	W045-0254
CZR i23 x 700 wheel, 142 x 12mm, 28h, Centerlock, Wing21, SRAM XDR	700	Rear	142x12mm	28-hole	SRAM XDR	Centerlock	23mm	590	804g	265lbs	W045-0255

*Frequency hub dimensions can be found on our Resources and User Manuals page.

**Wheel weights include the Solid Strip, tubeless tape and valve installed on each wheel.

Countless Configurations

CZR i23 wheels are available in a 24-spoke option for riders looking to minimize weight and increase compliance, while the 28-spoke versions are best for heavier or more aggressive riders who prioritize stiffness and durability. All CZR i23 wheels are available with Centerlock or 6-bolt rotor mounts. CZR i23 front wheels use a 12x100mm Frequency hub, but 15mm end caps are also available separately on our Replacement Hub Parts page.

Why Choose CZR i23?

Fast and light CZR i23 gravel wheels were designed to minimize weight and maximize compliance on rough gravel roads. With front wheel weights starting at 620g and rears at 775g, they also deliver the greatest strength-to-weight ratio of any gravel wheelset on the market. We even stand behind them with our Ride With Confidence Guarantee for those few-and-far-between crash replacement cases. Read below for more info.

Bikerumor Editor's Choice Award

"After plenty of abuse and loaded riding, they’re the first carbon gravel wheelset that I’ve used in a while that hasn’t required truing and spoke tension adjustments. These wheels are certainly not the lightest, but what they lack in gram-shaving, they make up for in ride quality and durability with reliable Frequency hubs, and high-end Pillar Wing Spokes. When wrapped in one of my favorite gravel tires, the 45mm Riddler, the combination is nearly perfect."

Zach Overholt
Managing Editor, Bikerumor

WATCH THE TECH VIDEO

Read The FAQs

HOW DOES RIM WIDTH AFFECT TIRE VOLUME AND PROFILE?

Wider rims will cause a tire to also have a wider width, with more air volume within the tire and a flatter tire tread profile than designed for. As a general rule of thumb, a 2mm increase or decrease of inner rim width will result in a tire section width increase or decrease of 1mm. For example, our Nano 40 tire has a tire section width of 40mm on a 21mm inner rim width, however it will have a tire section width of 41mm on a 23mm inner rim width.

15MM END CAPS ON FREQUENCY HUBS?

All CZR i30 front wheels feature hubs with 15mm end caps, but CZR i23 front wheels are assembled using Frequency hubs with 12x100mm front wheel spacing. However, we also sell a 15mm end cap kit on our Replacement Hub Parts page for riders with forks that require the use of a 15mm axle, such as Lauf forks. Swapping the end caps does not require any special tools.

WHY DO CZR i23 WHEELS HAVE A HOOKED BEAD WHILE CZR i30 ARE HOOKLESS?

CZR i23 rims feature a hooked bead because doing so provides a more dependable connection between the tire and rim when running a tire at the higher air pressures that are common with adventure road and gravel riding. CZR i30 rims feature a hookless bead because the smooth bead surface allows for more material to be used in an area when strength is incredibly important. Both CZR i23 and CZR i30 rims are compatible with any tires that comply with ETRTO standards.

ARE THERE TRICKS TO INSTALLING A TIRE ON AN ASYMMETRICAL RIM?

Asymmetrical rims feature a "short" and "long" side. It is helpful to always mount both sides of the tire onto the rim on the "short side" of the rim. The short side of the rim provides the shortest distance between the rim leg/bead and the valley of the rim. Once the first tire bead is completely on the rim, it can be pulled over the rubber portion of the valve and positioned at the deepest part of the rim valley. The other side of the tire can then be installed onto the rim with the least amount of resistance.
