KOM Light i25

The KOM Light i25 rim delivers premium performance for gravel and adventure cycling. Enjoy its lightweight design and exceptional strength on every ride. Get the KOM Light i25 today!

$125.95

Select product

Variant

SKU: W020-0626

Free shipping $100+Contiguous US only

Free shipping for orders over $100, excluding deliveries to Hawaii and Alaska.

Orders are typically processed within 1-2 business days and shipped via UPS standard ground service from our warehouse in San Rafael, California.

30 day return policy

Decide a product wasn't for you? Return any unused product for up to 30 days with no questions asked.

Warranty policy

We guarantee our products for at least two years.

Usage Gravel / Cyclocross / Cross-Country / Trail

Product description

Our lightest alloy rims, the KOM Light family combines high-end performance and proven tubeless dependability to create an affordable rim attainable by all. KOM Light rims employ an open cavity design to make them sprightly enough for 200 miles of gravel, while strong 6069 aluminum alloy also make them resilient enough to endure daily hammering on your trail bike. Choose KOM Light when you're looking for high-end performance at a low-key price.

KOM Light i25

$125.95

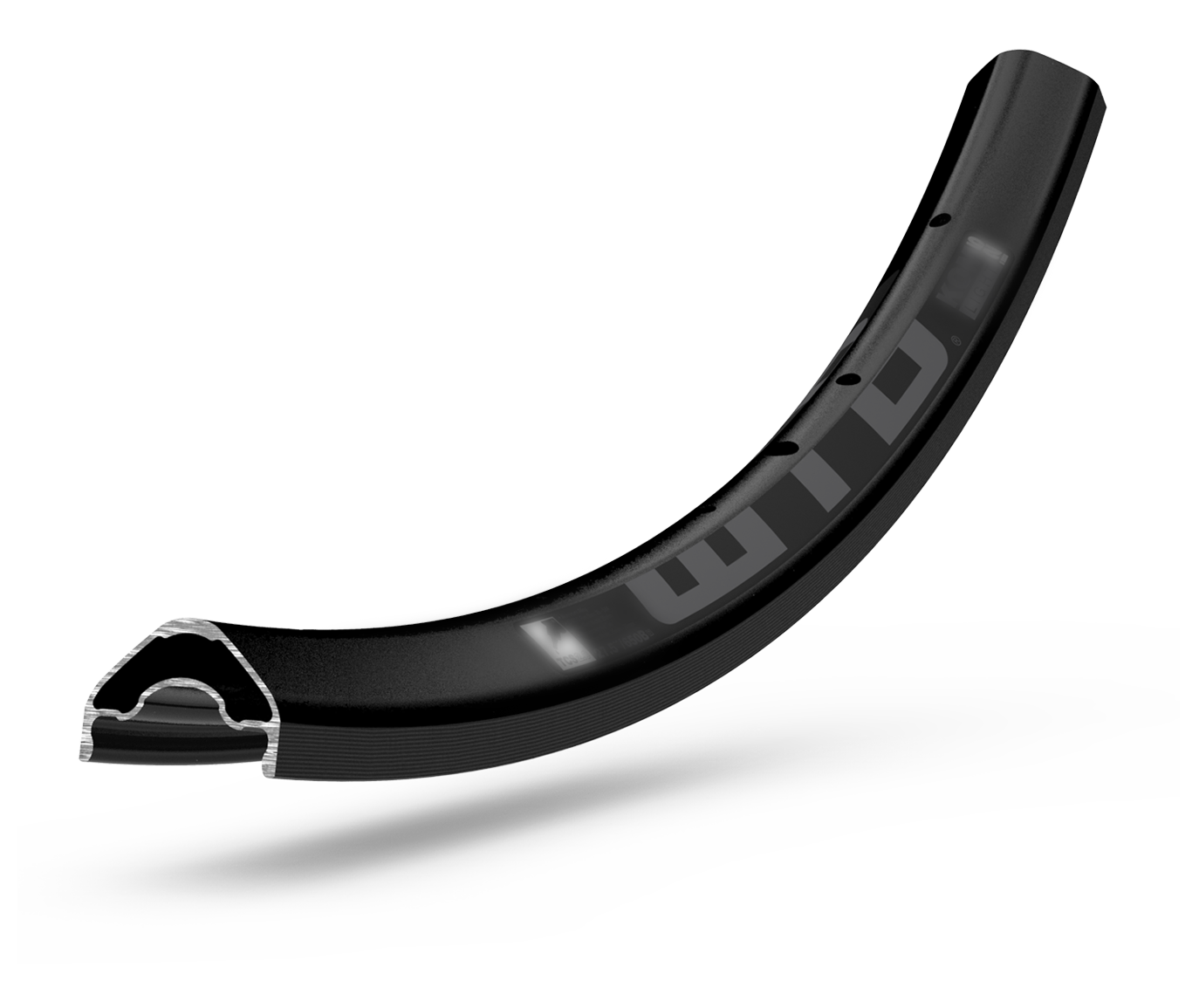

Open-Cavity Design

Open-cavity rim profile eliminates unnecessary weight while also reducing radial stiffness to create a smoother ride. Open-cavity rims are the top choice of drop bar and XC riders wanting to minimize weight while also improving rim compliance for less overall body fatigue at the end of a long day.

Dependable 6069 Alloy

Many years of rim development and success have confirmed 6069 to be the perfect aluminum alloy blend for both drop bar and mountain bike rims. Our extensive testing shows other 6000-series alloy to be less ding-resistant, while stiffer 7000-series alloys result in a harsher ride feel and tend to increase pinch flats.

4D Angled Spoke Holes

Drilling spoke holes at an angle eliminates binding and lateral loading of the spoke and nipple interface. It also allows spoke tension to be more evenly dispersed on the nipple rather than loading one side more than the other. Allowing the spoke to depart the rim at a natural angle increases the longterm durability of both the spoke and nipple.

TCS Solid Strip

Durable nylon strip that lies between the rim and tubeless tape to prevent tubeless tape from pushing into the spoke holes and ensures a smooth interface between the tire and rim. The smooth surface makes it easier to mount a tire by preventing air from escaping around the bead at each indent during inflation. Solid Strip also protects the airtight system from puncture in the case of a broken spoke.

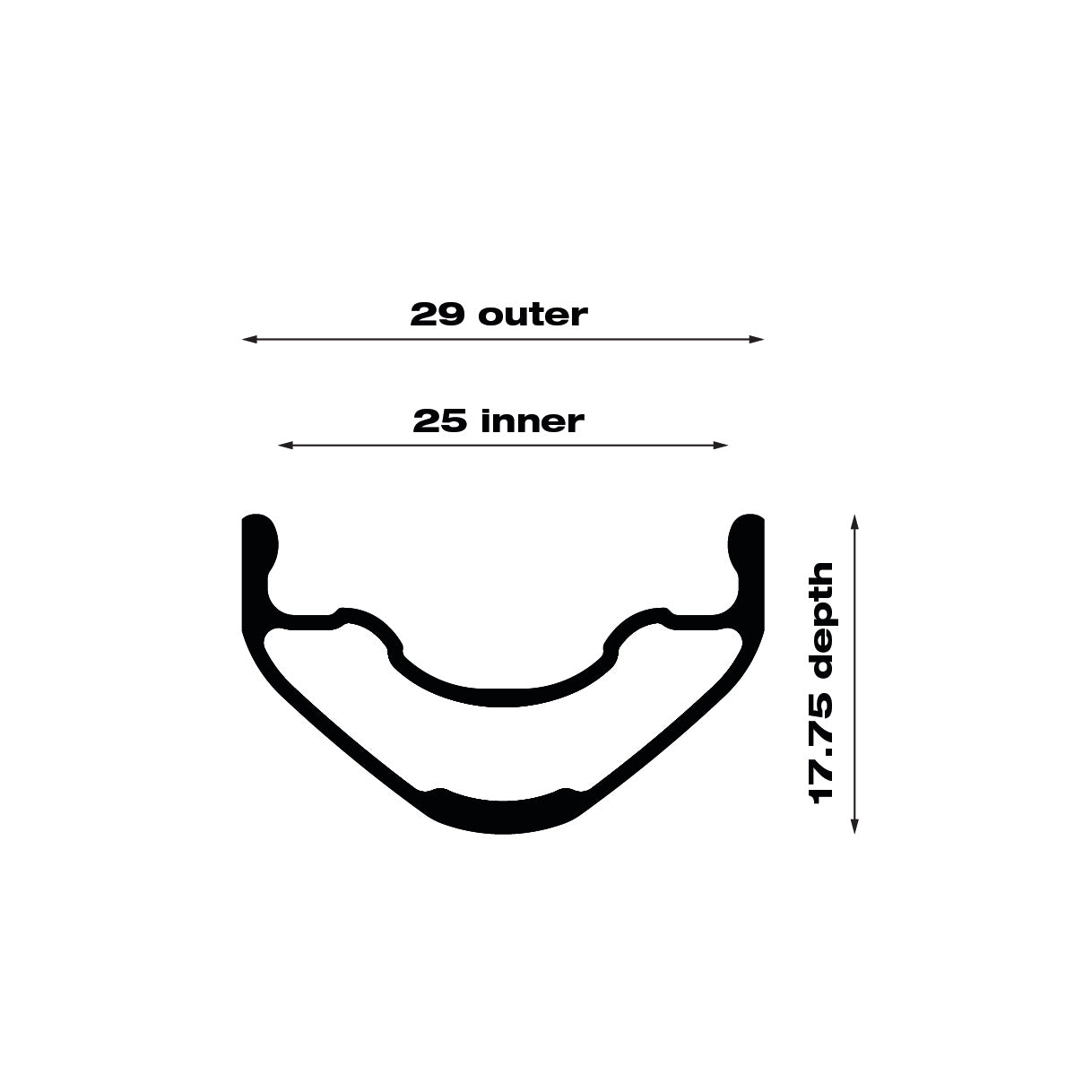

25mm inner rim width

KOM Light rims with a 25 inner rim width are best suited for gravel bikes with 41-50mm tires. They are also the rim of choice for our beloved 650x47mm Road Plus tires. Choosing the correct inner rim width for the tires you ride will optimize the air volume and tire profile of your specific tire and rim combo.

Features

Open-Cavity Design

Dependable 6069 Alloy

4D Angled Spoke Holes

TCS Solid Strip

25mm inner rim width

Technology

TCS (Tubeless Compatible System) is our industry-leading tubeless rim/tire system designed to international ETRTO and ISO standards.

6069 is the perfect aluminum alloy for bicycle rims due to its high tensile and fatigue strength, minimal weight, and excellent anti-corrosion properties.

Spoke holes are drilled at an angle to match the natural spoke path between a rim and hub. Eliminates binding and lateral loading of the nipples to increase wheel durability.

Rim ends are hydraulically pressed over an extruded aluminum insert that matches the inner cavity of the rim and is further reinforced by industrial epoxy.

Sloped rim valley allows the bead of the tire to easily and smoothly move into place during installation and inflation.

Installed between the rim and tubeless tape to prevent tape from sagging at each spoke hole and make tire inflation easier while also preventing puncture from a broken spoke.

Specs

SPECIFICATIONS: (Max spoke tension range: 110-120KgF)

Product	Wheel Size	Inner Width	*Weight	Hole Count	ERD	Rim Size Designation	Part number
KOM Light i25 27.5" TCS 2.0 Rim, 32 hole Black, PV	650 / 27.5"	25mm	430g	32	566	25-584	W020-0557
KOM Light i25 29" TCS 2.0 Rim, 32 hole Black, PV	700 / 29"	25mm	459g	32	606	25-622	W020-0558

*KOM Light rims weighed with Solid Strip installed.

Frequently Asked Questions

HOW DOES RIM WIDTH AFFECT TIRE VOLUME AND PROFILE?

Wider rims will cause a tire to also have a wider width, with more air volume within the tire and a flatter tire tread profile than designed for. As a general rule of thumb, a 2mm increase or decrease of inner rim width will result in a tire section width increase or decrease of 1mm. For example, our Nano 40 tire has a tire section width of 40mm on a 21mm inner rim width, however it will have a tire section width of 41mm on a 23mm inner rim width.

WHICH TUBELESS VALVE LENGTH IS BEST FOR THIS RIM?

All of our alloy rims work great with a 34mm valve stem. If you are using a deeper dish rim, like our CZR i23 rim, then we recommend the 46mm long valve stem. CZR i30 rims accept either length of valve.

WHICH WIDTH OF TCS TAPE SHOULD I USE TO SET THIS RIM UP TUBELESS?

WTB recommends using tape that is 5mm wider than the inner rim width. All WTB rims have the inner rim width listed in the name (i.e. KOM Light i25 rim requires 30mm TCS Tubeless Tape).

TCS (Tubeless Compatible System)

TCS (Tubeless Compatible System) is our standardized tubeless system designed to meet international ETRTO standards and deliver unbeatable tubeless performance and reliability. TCS components reduce weight, increase traction, virtually eliminate flats and has established itself as the most dependable tubeless system available. Our TCS system includes tires, rims, tape, sealant and valves to provide a comprehensive package of unrivaled tubeless performance and reliability.
