Proterra Light i23

Discover the Proterra Light i23 Wheels, designed for superior gravel performance. Lightweight and durable, these wheels are perfect for your next adventure.

$113.95

$324.95

Select product

Variant

SKU: W045-0238

Free shipping $100+Contiguous US only

Free shipping for orders over $100, excluding deliveries to Hawaii and Alaska.

Orders are typically processed within 1-2 business days and shipped via UPS standard ground service from our warehouse in San Rafael, California.

30 day return policy

Decide a product wasn't for you? Return any unused product for up to 30 days with no questions asked.

Warranty policy

We guarantee our products for at least two years.

Usage Adventure Road / Gravel / Cyclocross

Product description

Proterra Light i23 wheels check all the boxes for a fast and light alloy wheelset. The 23mm inner rim width provides the optimal tire profile for adventure road and gravel tires ranging from 30-42mm. Its open-cavity profile features thin, weight-optimized walls that provide the perfect blend of stiffness, resilience and efficiency. Subdued graphics on a bead blast finish ensure these wheels won't clash with the colors of your dream bike. We didn't skimp on hubs either. Top-tier EZO bearings, a swift 6-pawl freehub and 5 degrees of engagement provide the look, sound and feel you expect of a high-end tubeless wheelset.

Proterra Light i23

$113.95

$324.95

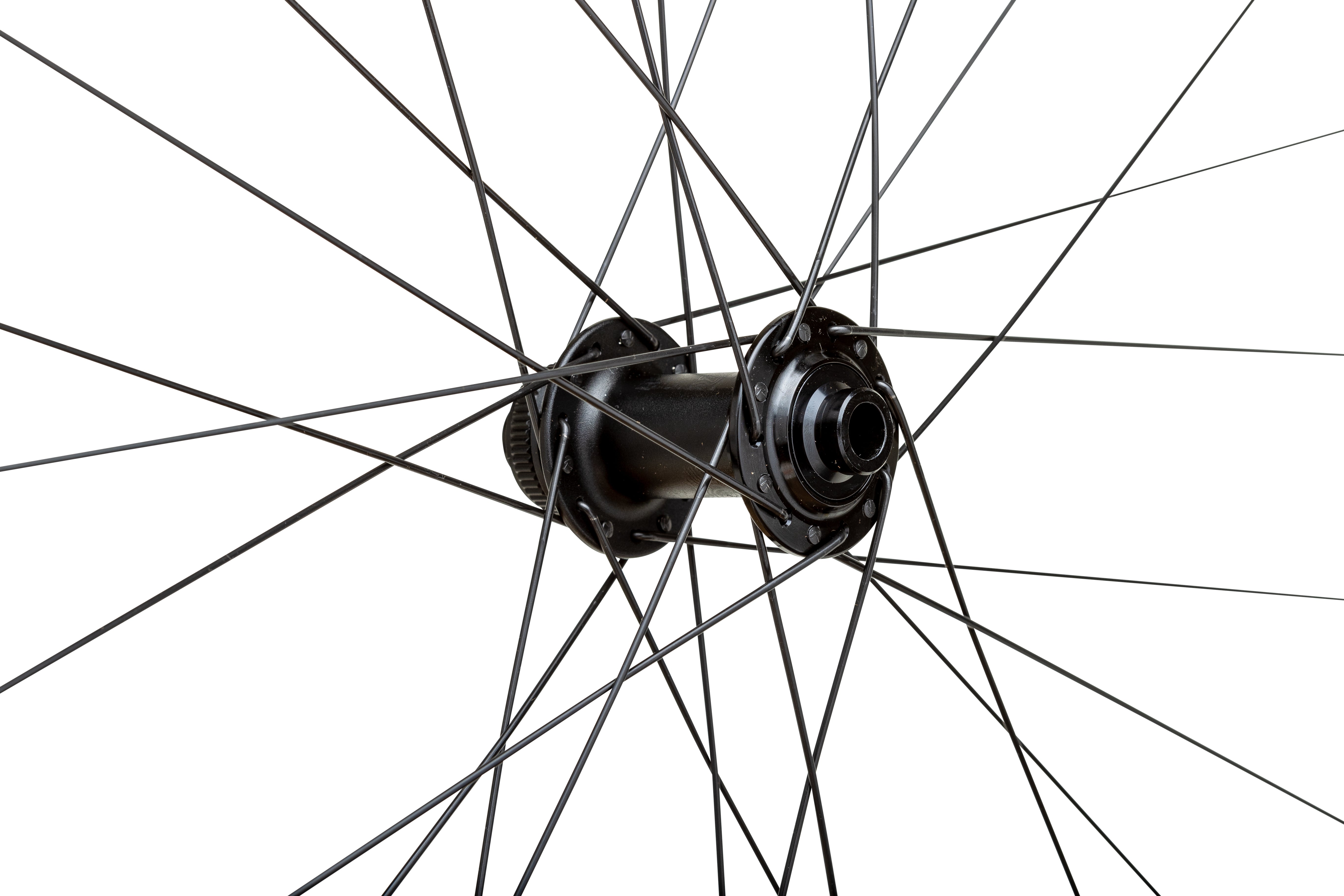

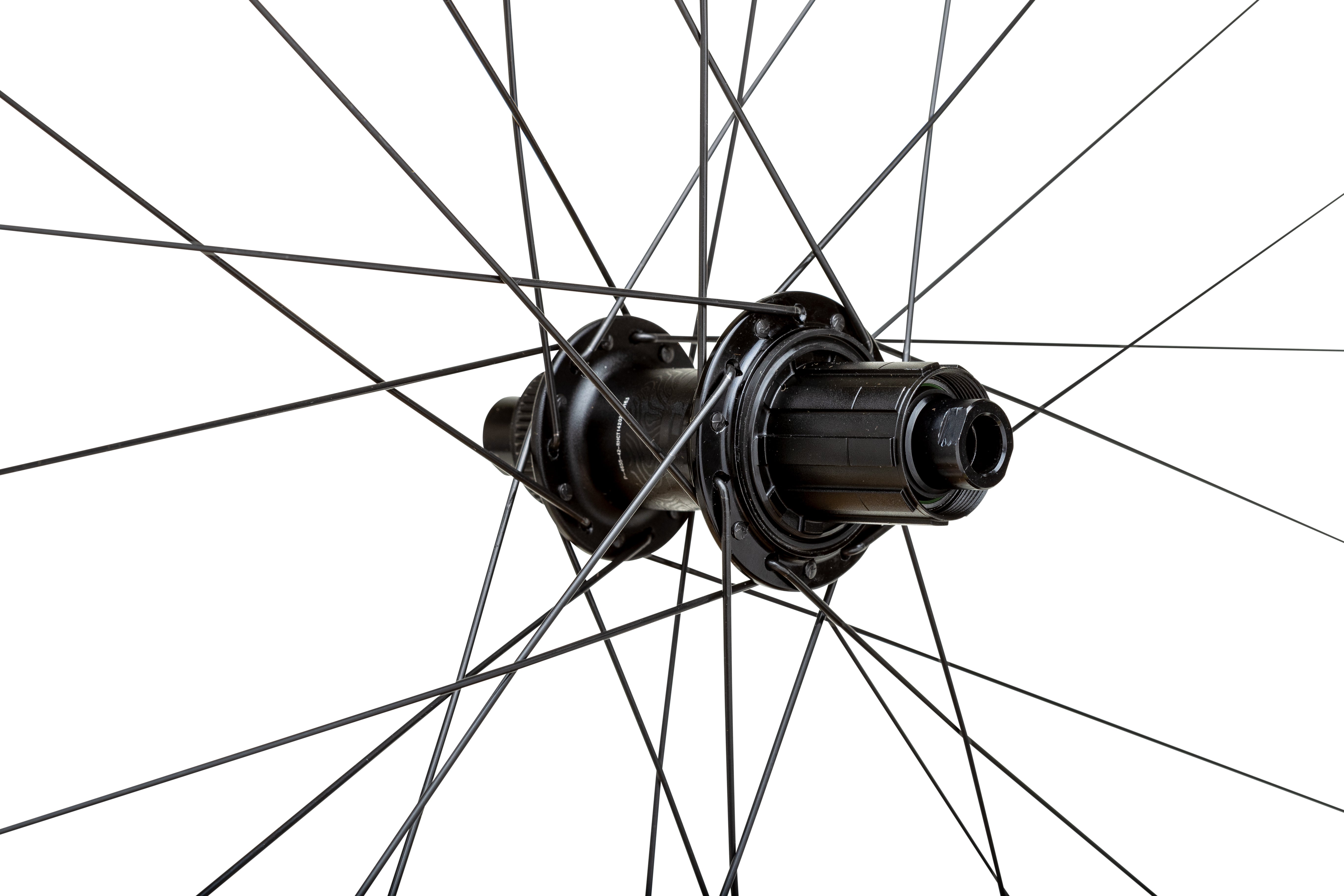

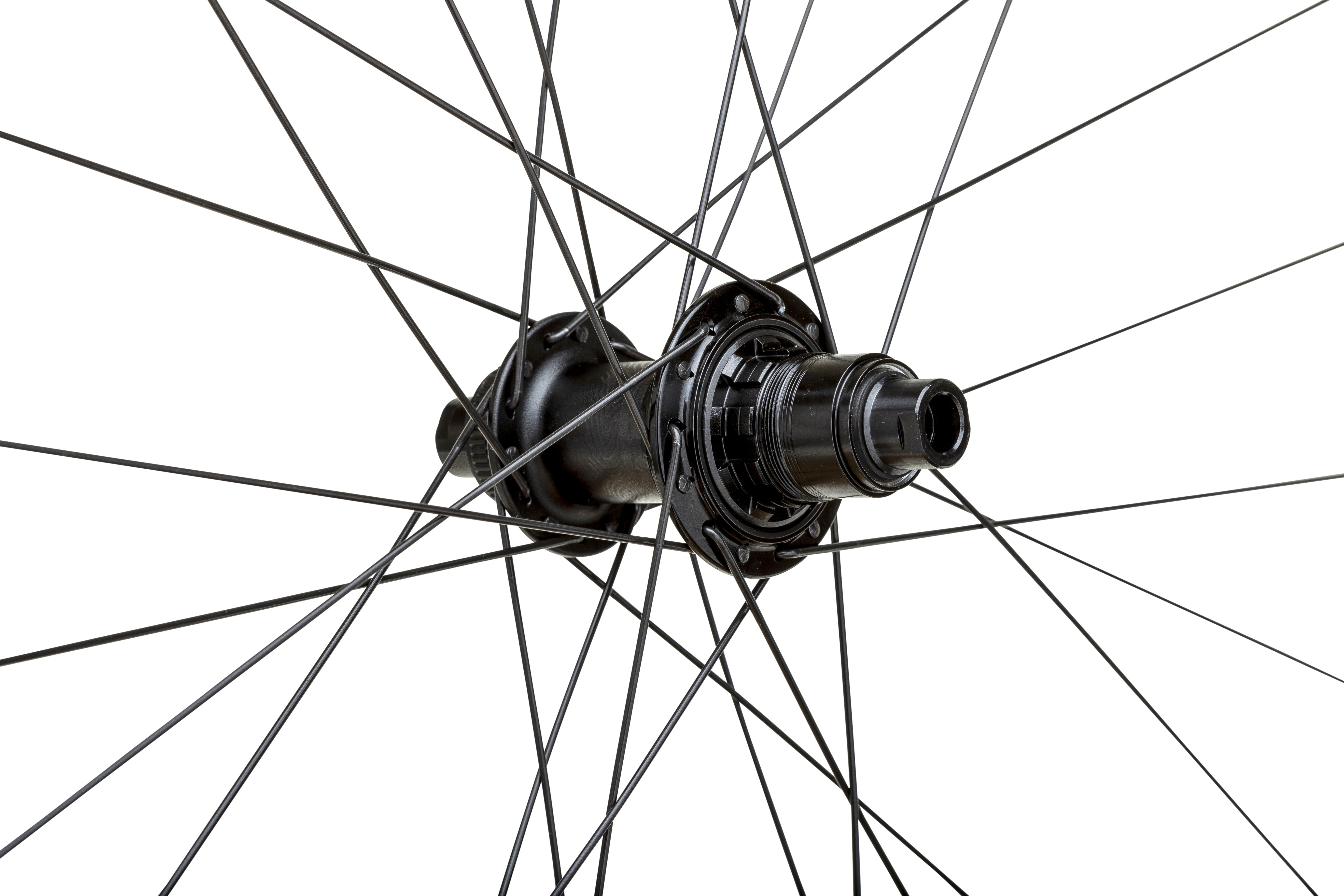

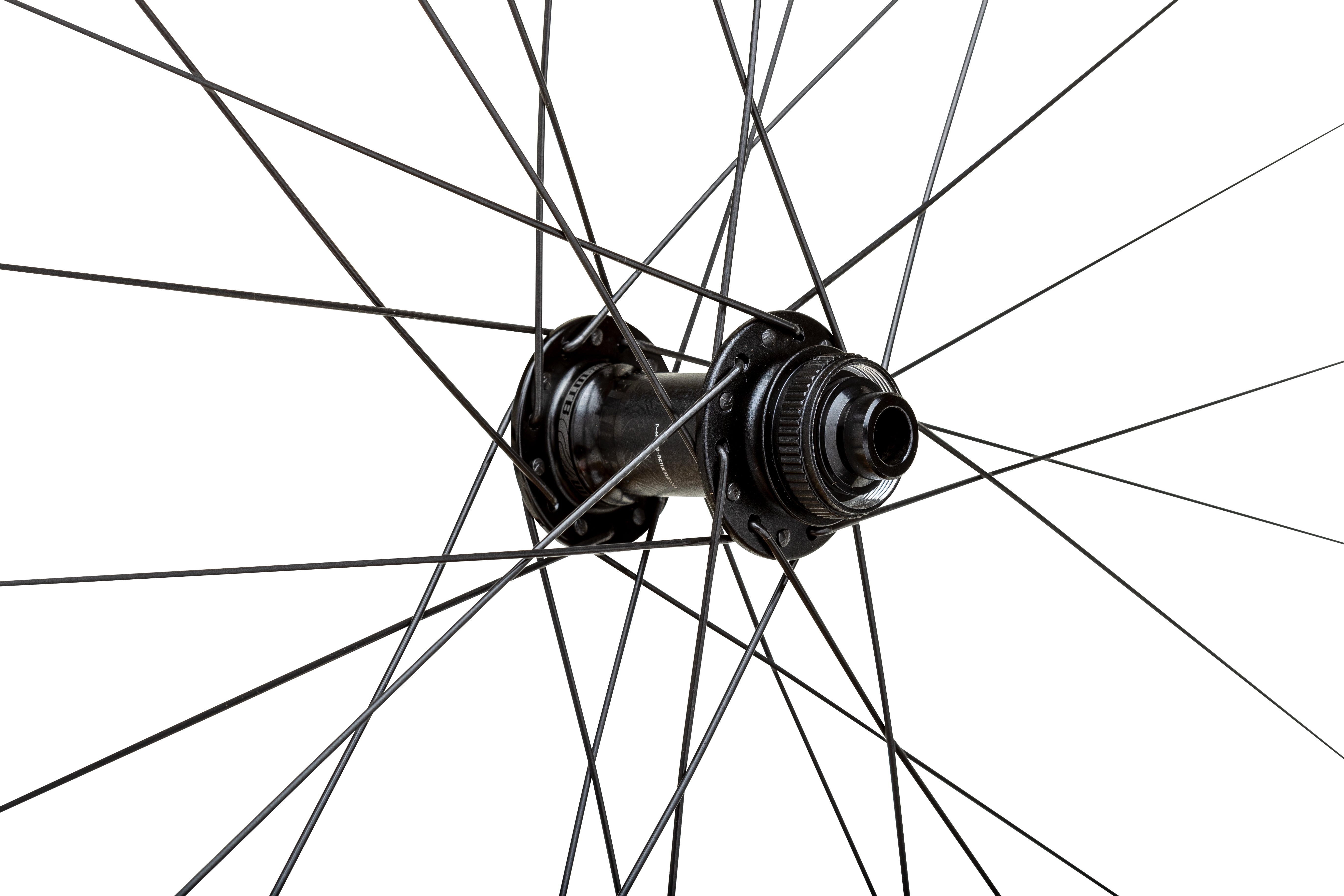

Frequency Hub

Frequency hubs feature a low-drag, 6-pawl design that alternates contact between two sets of 3-pawl groupings to provide a responsive 5 degrees of freehub engagement.

Solid Strip & TCS Tape

Durable nylon strip that lies between the rim and tubeless tape to prevent tubeless tape from pushing into the spoke holes and ensures a smooth interface between the tire and rim. The smooth surface makes it easier to mount a tire by preventing air from escaping around the bead at each indent during inflation. Solid Strip also protects the airtight system from puncture in the case of a broken spoke.

3-Cross Lacing and Alloy Nipples

Need confidence your gravel wheels will offer a lightweight advantage but still last through seasons of riding? Proterra Light i23 and & i25 wheels provide the longterm reliability of a 3-cross lacing pattern with the weight savings of alloy nipples.

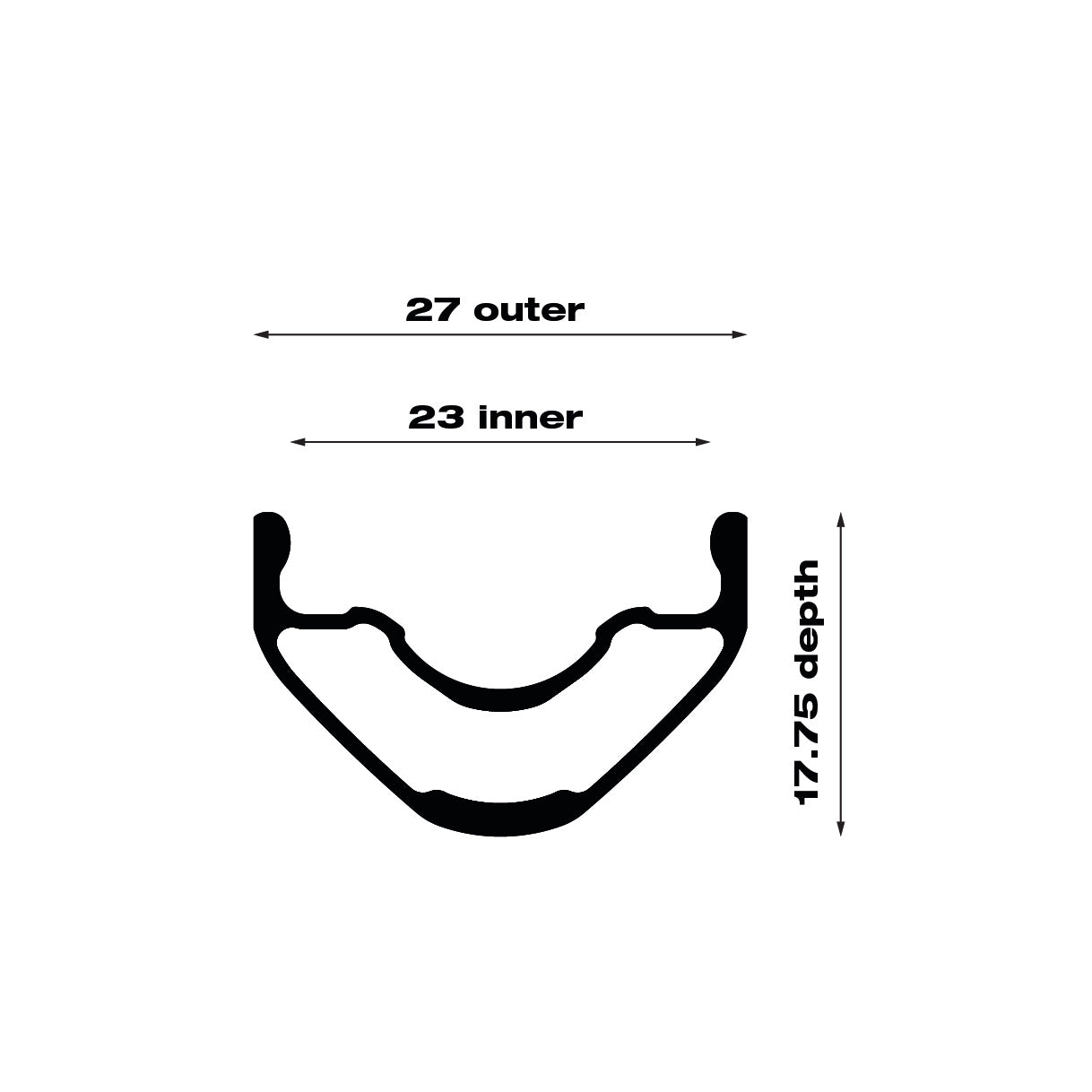

23mm inner rim width

Drop bar bikes with tires ranging from 32-40mm are best paired with a 23mm inner rim width, while a 25 inner rim width is best suited for the same bikes running 41-50mm tires. Choosing the correct inner rim width for the tires you ride will optimize the air volume and tire profile of your specific tire and rim combo.

HAND-BUILT

Proterra wheels are hand-built in our wheel building facility. Our team of wheel wizards lace, tension and tape every Proterra with the same attention to detail they provide their own wheels. This hands-on approach allows us to confidently stand behind our wheels as the most reliable on the market.

Features

Frequency Hub

Frequency hubs feature a low-drag, 6-pawl design that alternates contact between two sets of 3-pawl groupings to provide a responsive 5 degrees of freehub engagement.

Solid Strip & TCS Tape

3-Cross Lacing and Alloy Nipples

23mm inner rim width

HAND-BUILT

Technology

TCS (Tubeless Compatible System) is our industry-leading tubeless rim/tire system designed to international ETRTO and ISO standards.

6069 is the perfect aluminum alloy for bicycle rims due to its high tensile and fatigue strength, minimal weight, and excellent anti-corrosion properties.

Spoke holes are drilled at an angle to match the natural spoke path between a rim and hub. Eliminates binding and lateral loading of the nipples to increase wheel durability.

Rim ends are hydraulically pressed over an extruded aluminum insert that matches the inner cavity of the rim and is further reinforced by industrial epoxy.

Installed between the rim and tubeless tape to prevent tape from sagging at each spoke hole and make tire inflation easier while also preventing puncture from a broken spoke.

Sloped rim valley allows the bead of the tire to easily and smoothly move into place during installation and inflation.

Internationally standardized to ensure rim and tire compatibility are as consistent and user-friendly as possible for both WTB’s products and those of our competitors.

Freehub ratchet system quickly alternates between two groups of three pawls each to provide quick engagement and trusted durability.

Specs

SPECIFICATIONS: (Max spoke tension range: 110-120KgF)

Product	Wheel Diameter	Position	Spacing	Spoke Holes	Driver Body	Rotor Mount	Inner Rim Width	Rim ERD*	Weight**	Max Rider Weight	Part Number
Proterra Light i23 x 700 wheel, 12 x 100mm, 28h, Centerlock, DB	700	Front	12x100mm	28-hole	n/a	Centerlock	23mm	606	817g	265lbs	W045-0238
Proterra Light i23 x 700 wheel, 12 x 142mm, 28h, Centerlock, DB, SRAM XDR	700	Rear	12x142mm	28-hole	SRAM XDR	Centerlock	23mm	606	966g	265lbs	W045-0240
Proterra Light i23 x 700 wheel, 12 x 142mm, 28h, Centerlock, DB, Shimano HG 11spd	700	Rear	12x142mm	28-hole	Shimano HG 11spd	Centerlock	23mm	606	966g	265lbs	W045-0239
Proterra Light i23 x 700 wheel, 12 x 100mm, 28h, 6-bolt, DB	700	Front	12x100mm	28-hole	n/a	6-bolt	23mm	606	804g	265lbs	W045-0211
Proterra Light i23 x 700 wheel, 12 x 142mm, 28h, 6-bolt, DB, SRAM XDR	700	Rear	12x142mm	28-hole	SRAM XDR	6-bolt	23mm	606	946g	265lbs	W045-0213

*Proterra hub dimensions can be found on our Resources and User Manuals page.

**Proterra wheel weights include the Solid Strip, tubeless tape and valve installed on each wheel.

Frequently Asked Questions

HOW DOES RIM WIDTH AFFECT TIRE VOLUME AND PROFILE?

Wider rims will cause a tire to also have a wider width, with more air volume within the tire and a flatter tire tread profile than designed for. As a general rule of thumb, a 2mm increase or decrease of inner rim width will result in a tire section width increase or decrease of 1mm. For example, our Nano 40 tire has a tire section width of 40mm on a 21mm inner rim width, however it will have a tire section width of 41mm on a 23mm inner rim width.

15MM END CAPS ON FREQUENCY HUBS?

All Proterra Light i23 wheels are built around Frequency hubs with 12x100mm front axle spacing. However, we also sell a 15mm end cap kit on our Replacement Hub Parts page for riders with forks that require the use of a 15mm axle, such as Lauf forks. Swapping the end caps does not require any special tools.

WHAT WIDTH TCS TUBELESS TAPE FOR MY WHEELS?

All WTB wheels are sold with TCS Tubeless Tape preinstalled. If you need to replace it at any time, WTB recommends using tape that is 5mm wider than your inner rim width. For example, an i30 rim would require 35mm TCS Tubeless Tape.

WHICH LENGTH OF TCS TUBELESS VALVE FOR MY PROTERRA WHEELS?

All WTB alloy rims and wheels are best paired with a 34mm valve stem, which comes preinstalled on all Proterra wheels.

TCS TUBELESS COMPATIBLE

TCS is our standardized tubeless rim/tire system designed to meet international ETRTO standards and deliver unbeatable tubeless performance and reliability. TCS components reduce weight, increase traction, virtually eliminate flats and has established itself as the most dependable tubeless system available. Our TCS system includes tires, rims, tape, sealant and valves to provide a comprehensive package of unrivaled tubeless performance and reliability. Every Proterra wheel benefits from our TCS (Tubeless Compatible System) system and ships with the Solid Strip, TCS tubeless tape and black alloy valves already installed. This means all Proterra wheels are ready for tubeless tires and sealant right out of the box.

Dependable 6069 Alloy

Proterra rims are extruded from WTB’s premier 6069 aluminum alloy to optimize strength while a bead blast finish and durable water-transfer decals keep your wheels looking fresh. Our extensive testing shows other 6000-series alloy to be less ding-resistant, while stiffer 7000-series alloys result in a harsher ride feel and tend to increase pinch flats. All of this ensures WTB Proterra wheels provide the compliance you expect on the first ride and the longevity you demand for every ride that follows.

Packaged in my Kona Rove ST 2020, and Rove DL 2023 - weakest point!!

I have had the rim crack around the spoke holes in multiple places on the i23 and i25. I ride gravel, ans smooth single track, and tarseal. I do quite a few km, and some touring. I'm sorry but the rims are not up to it. I have had two rear rims, and one front rim crack in the soace of 3 years. I do not recommend, and beware wtb will not replace a rim after a period of 2yrs from new.

Timely delivery and excellent quality.

Timely delivery and excellent quality. Only thing keeping this from five stars was the lack of axle protection in the packaging. Luckily, there was no hub damage.

Thanks so much for the feedback! I will relay to our shipping/packing team!

Sturdy build but CANT remove WTB Venture tires!

Stock wheelset on my Evil Chamois Hagar. Bought new wheels and no matter what tire lever used I can't unseat these tires and rims! Incredibly frustrating and so glad this didn't happen out on the trails or this would've been a long hike out. Careful, y'all!

Lasted a couple rides and so far so good

Nice clickety click to it, tried to set up tubeless but the riddlers didn't take so just set up some tubes and they handled road and gravel nicely

Spokes Pulled Through on First Gravel Ride

These wheels came stock on my 2022 Salsa Journeyer. The spokes pulled through the wheel on first contact with gravel, after about 75 miles on pavement. I returned the bike to the selling dealer, who provided warranted wheelset replacement. So far, so good with the replacement wheels. The dealer told me that WTB had some component quality defects and that many Salsa bikes were coming back for warranty. I am satisfied in that Salsa and likely ultimately WTB honored the warranty.
