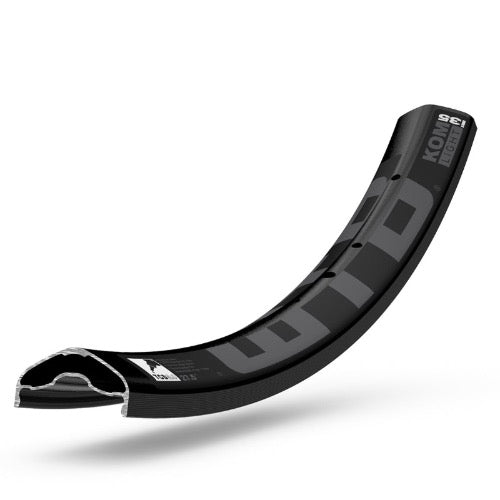

KOM Light i35 TCS 2.0, 32-hole, 29" Rim
PRODUCT TECHNOLOGY
TCS (Tubeless Compatible System) is our industry-leading tubeless rim/tire system designed to international ETRTO and ISO standards.
6069 is the perfect aluminum alloy for bicycle rims due to its high tensile and fatigue strength, minimal weight, and excellent anti-corrosion properties.
Spoke holes are drilled at an angle to match the natural spoke path between a rim and hub. Eliminates binding and lateral loading of the nipples to increase wheel durability.
Rim ends are hydraulically pressed over an extruded aluminum insert that matches the inner cavity of the rim and is further reinforced by industrial epoxy.
Sloped rim valley allows the bead of the tire to easily and smoothly move into place during installation and inflation.
Installed between the rim and tubeless tape to prevent tape from sagging at each spoke hole and make tire inflation easier while also preventing puncture from a broken spoke.
SPECIFICATIONS: (Max spoke tension range: 110-120KgF)

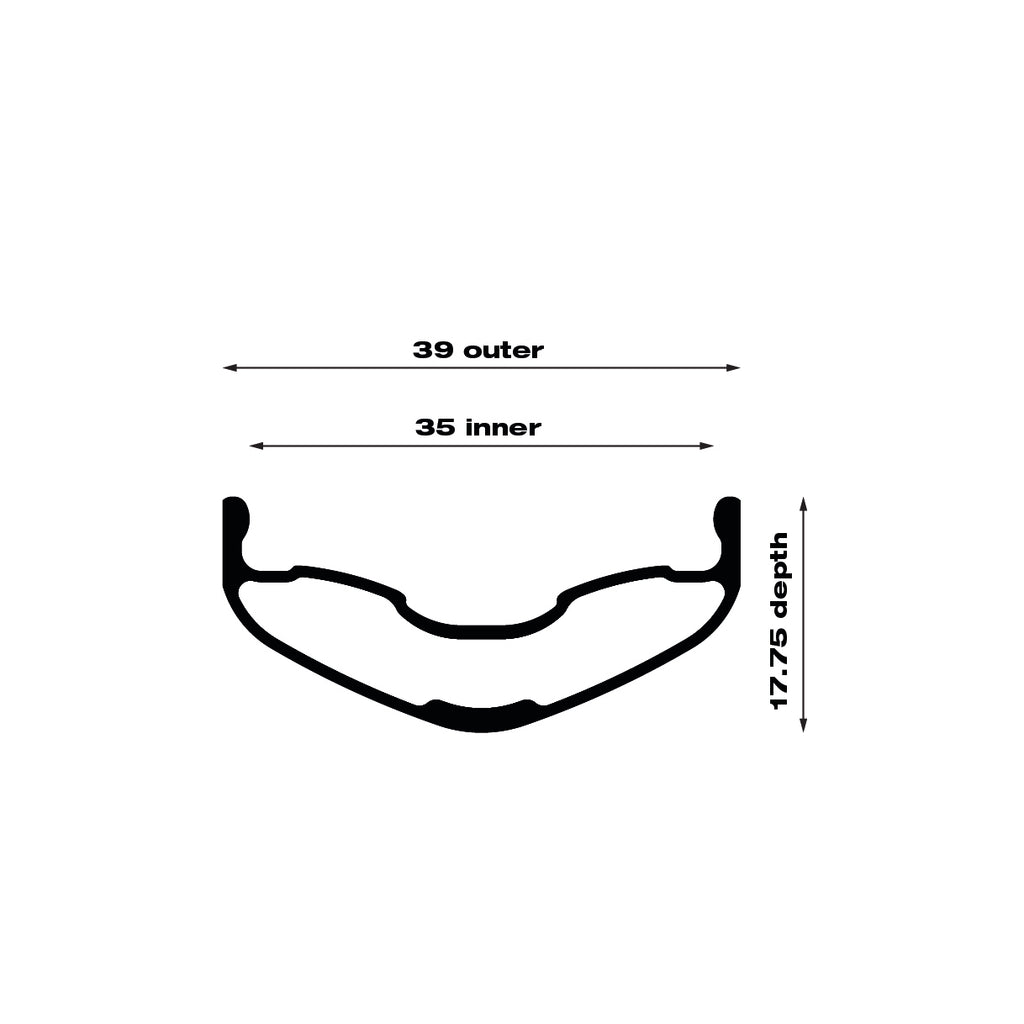

Product | Wheel Size | Inner Width | *Weight | Hole Count | ERD | Rim Size Designation | Part number |
KOM Light i35 27.5" TCS Rim, 32 hole Black, PV | 27.5" | 35mm | 545g | 32 | 569 | 35-584 | W020-0561 |
KOM Light i35 29" TCS Rim, 32 hole Black, PV | 29" | 35mm | 582g | 32 | 604 | 35-622 |
