CZR i30 Rim

CZR i30 Rim

Select Product
View Specs
Product Description
CZR i30 are premier mountain rims designed to endure whatever lies in their path. Lateral stiffness that only carbon can provide is combined with fine-tuned radial compliance to make sure CZR i30 holds the line through chunky tech without beating you up in the process. Reinforced  spoke holes, Solid Strip integration, an asymmetrical design and two years of development make CZR i30 the most dependable carbon rims on the market. Ride with Confidence Guarantee
Usage: Trail • Enduro
View the Specs
Asymmetrical Design

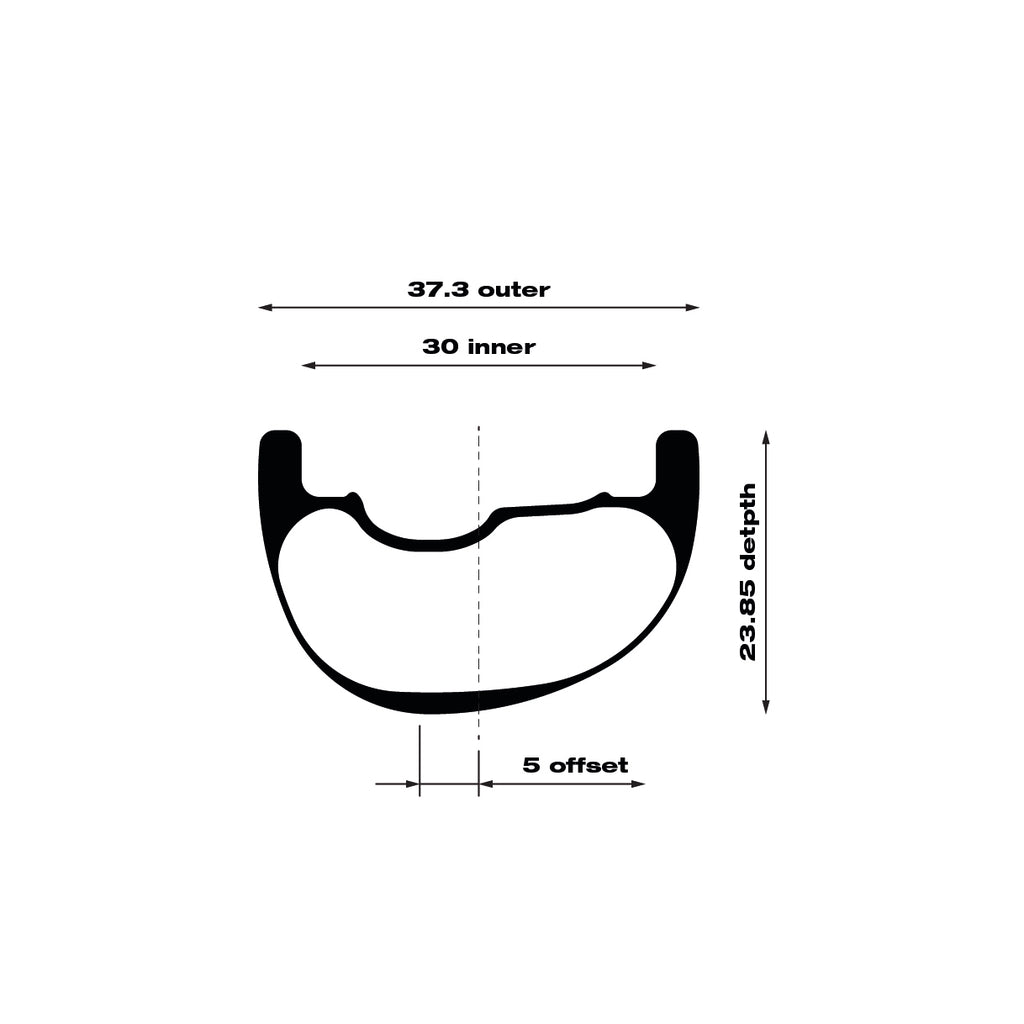

Asymmetrically offset spoke holes help equalize the spoke tension of a wheel build, while the symmetrical outer profile distributes impact forces throughout the entire rim rather than absorbing them by one side more than the other. CZR i30 rims feature asymmetrical spoke offset of 5mm.
Reinforced Spoke Beds
Additional carbon at each spoke bed improves overall rim strength and durability while also minimizing weight in areas where less strength, and therefore material, is needed.
4D Angled Spoke Holes
Molding spoke holes at an angle eliminates binding and lateral loading of the spoke and nipple interface. It also allows spoke tension to be more evenly dispersed on the nipple rather than loading one side more than the other. Allowing the spoke to depart the rim at a natural angle increases the longterm durability of both the spoke and nipple.
TCS Solid Strip
Durable nylon strip that lies between the rim and tubeless tape to prevent tubeless tape from pushing into the spoke holes and ensures a smooth interface between the tire and rim. The smooth surface makes it easier to mount a tire by preventing air from escaping around the bead at each indent during inflation. Solid Strip also protects the airtight system from puncture in the case of a broken spoke.
30mm inner width
Numbers tend to be a hard thing to agree upon in the world of mountain biking, but 30mm has become widely accepted as the perfect inner rim width for trail and enduro riding. Pairing this inner rim width with a 2.4-2.6" tire increases tire volume and sidewall support compared to traditionally narrower rims. The increased volume also allows riders to run lower tire pressures which translates to improved traction and comfort. Most modern mountain tires have beeb designed to provide the optimal profile on a 30mm rim.
Why Choose CZR?
CZR carbon rims provide unbeatable strength while also coming in lighter than the competition. Reinforced spoke beds, proven 4D angled spoke hole drilling and an asymmetrical design provide all the necessary ingredients for an incredibly durable carbon rim. Add in the Solid Strip integration of our TCS 2.0 system and you now have a system that is not only easier to set up tubeless, but also nearly impervious to losing pressure in the event of a broken spoke. We even did third-party testing against the competition, and found CZR i30 rims to be laterally stiffer and more impact resistant to those within the same weight category.
Ride With Confidence Guarantee
If you break our CZR carbon rim while riding, we'll send you one for free. No exceptions. Didn't see that sharp rock until you were mid-air? Was the huck-to-flat a little flatter than you anticipated? Do you simply ride like a freight train without brakes? As long as you are the original owner and were riding your bike when it happened, we'll replace it for free. Your friends may judge for your poor line choice, but we won't. We also provide the option for us to rebuild the wheel and send it back to you with fresh spokes and nipples.
Read The FAQs
"A much tougher beast"
"Exceptional quality"
- MB Action
"Impressive warranty"
30 Day Return Policy
Decide a product wasn't for you? Return any unused product for up to 30 days with no questions asked.
Ride with confidence guarantee
Our CZR carbon rim replacement policy has you covered, regardless of what happens on the trail.
Warranty Policy
We guarantee our products for at least two years. CZR carbon rims receive an additional lifetime warranty.
